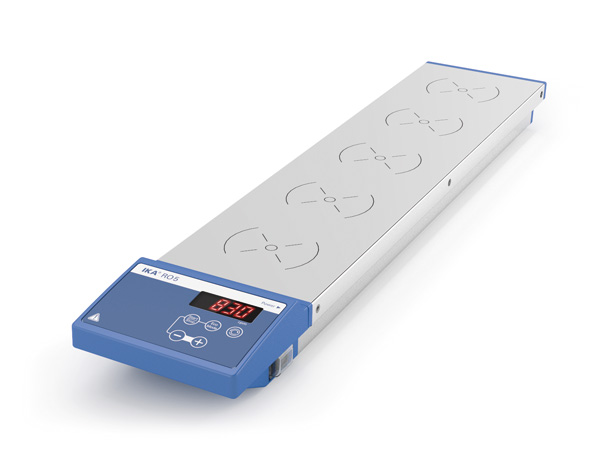

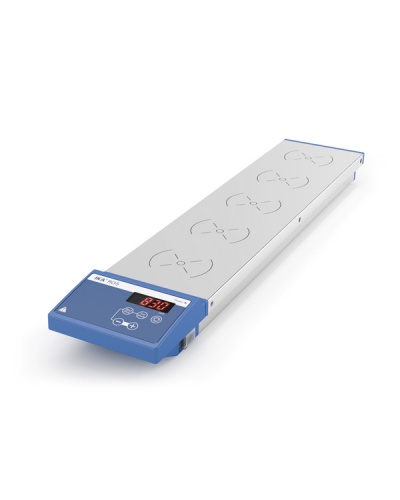

5 Position Magnetic Stirrer without Hot Plate RO 5

Brand: IKAIKA
ro5
  5-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the eq ...Read more



  • Description



5-position digital magnetic stirrer without heating, designed for synchronous stirring. The magnetic coil technology provides noiseless and consistent stirring on all positions. Speed remains constant, even when load changes. The closed and compact design allows easy cleaning and protects the equipment against the penetration of liquids. Additionally, a removable transparent anti-slip mat is included.

  • Adjustable reverse operation
  • Wear free magnetic coils
  • Error code display
  • Easy operation with touch keypad
  • Suitable for continuous operation
  • Speed range: 0 - 1200 rpm



Number of stirring positions

5

Stirring position distance

90 mm

Speed deviation of individual stirring positions

0 %

Stirring quantity max. per stirring position (H2O)

0.4 l

Speed control

10 RPM Steps

Speed range

0 - 1200 rpm

Stirring bar length

25 - 30 mm

Set-up plate material

stainless steel 1.4301

Set-up plate dimensions

120 x 470 mm

Dimensions (W x H x D)

120 x 60 x 570 mm

Weight

3 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 40

Voltage

100 - 240 V

Frequency

50/60 Hz

Power input

13 W

DC Voltage

24 V=

Current consumption

500 mA
