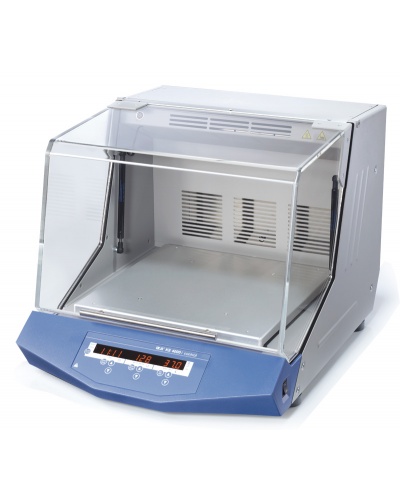

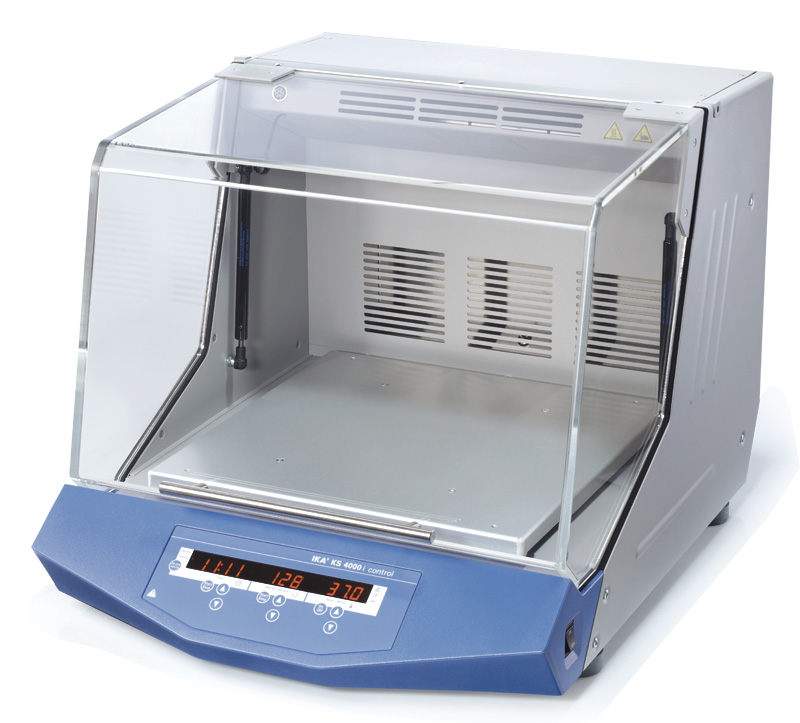

Incubator Shaker KS 4000 i control

Large LED display for speed and time settings
Controls with antimicrobial coating for reduction of bacteria
Integrated PID temperature control (use of two PT 1000 temperature sensors)
Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
Electronic temperature and speed control
Electronic timer switch: 0 - 999 h (set by the minute or by the hour)
Optional built-in cooler for connection to an external cooling unit e.g. KV 600
Unit switches off automatically if disturbed
Unit stops automatically when hood is lifted
Collecting tray with drain hose on rear of unit
Simple operation
All functions can be controlled and documented with labworldsoft®
Attachements are not included in delivery, please order seperatly

Type of movement	orbital
Shaker diameter	20 mm
Permissible shaking weight (incl. attachment)	20 kg
Motor rating input	82 W
Motor rating output	24 W
Permissible ON time	100 %
Speed min (adjustable)	10 rpm
Speed range	10 - 500 rpm
Speed display	LED
Timer	yes
Timer display	7 segment LED
Time setting range	1 - 59940 min
Operating mode	timer and continuous operation
Heating temperature range	room temp. +5° - 80 °C
Heat output	1000 W
Temperature display	yes
Temp. stability (0,2l H2O; RT 25°C, T=37°C)	0.1 ±K
Total volume inner chamber	90 l
Height with open hood	875 mm
Dimensions (W x H x D)	580 x 525 x 750 mm
Weight	50 kg
Permissible ambient temperature	15 - 32 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 30
RS 232 interface	yes
Voltage	230 / 115 / 100 V
Frequency	50/60 Hz
Power input	1120 W

Brand: IKA
