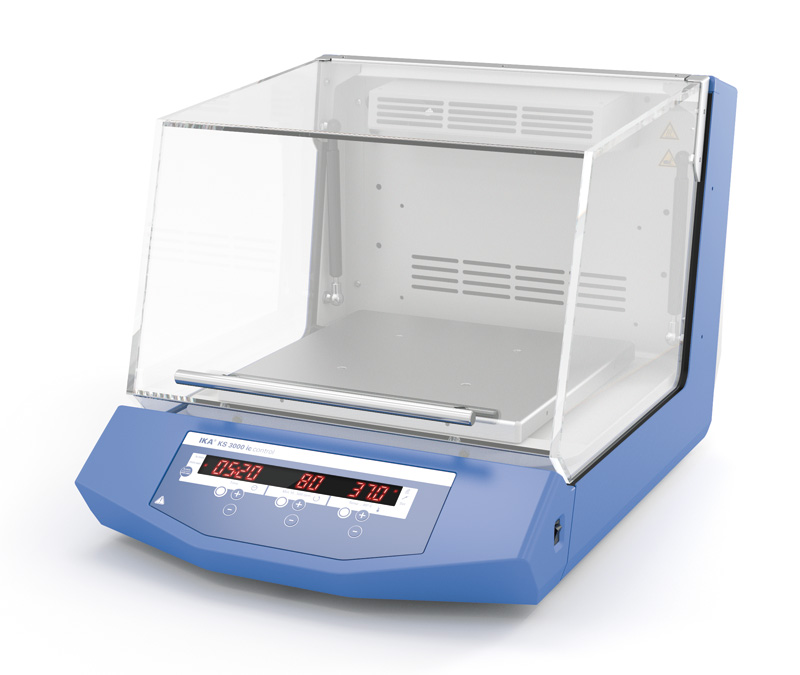

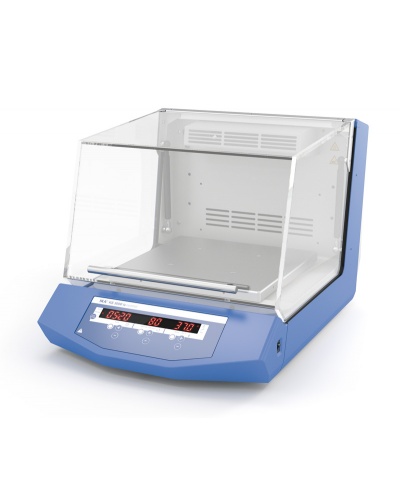

Incubator Shaker KS 3000 ic control

Brand: IKAIKA
ic
  Large LED display for speed and time settings Controls with antimicrobial coating for reduction of bacteria Integrated PID temperature control (use of two PT 1000 temperature sensors) Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60 Electroni ...Read more



  • Description



  • Large LED display for speed and time settings
  • Controls with antimicrobial coating for reduction of bacteria
  • Integrated PID temperature control (use of two PT 1000 temperature sensors)
  • Junction box in the workspace for connection of an additional temperature sensor e.g. PT 1000.60
  • Electronic temperature and speed control
  • Electronic timer switch: 0 – 999 h (set by the minute or by the hour)
  • Optional built-in cooler for connection to an external cooling unit e.g. KV 600
  • Unit switches off automatically if disturbed
  • Unit stops automatically when hood is lifted
  • Collecting tray with drain hose on rear of unit
  • Simple operation
  • All functions can be controlled and documented with labworldsoft®
  • Attachements are not included in delivery, please order seperatly



Type of movement

orbital

Shaker diameter

20 mm

Permissible shaking weight (incl. attachment)

7.5 kg

Motor rating input

45 W

Motor rating output

10 W

Permissible ON time

100 %

Speed min (adjustable)

10 rpm

Speed range

10 - 500 rpm

Speed display

LED

Speed deviation

1 %

Speed control

1 RPM steps

Timer

yes

Timer display

7 segment LED

Time setting min.

1 s

Time setting range

1 - 59940 min

Operating mode

timer and continuous operation

Heat output

1000 W

Set temperature resolution

0.1 ±K

Control accuracy with sensor

(1 vessel 0.5 L H2O, RT 22°C, T=37°C)

0.5 ±K

Temperature display

yes

Temperature range (inlet T>3°C)

room temp. - 10° - 80° °C

connections for external cooling

yes

embedded cooling coil

yes

Operating area inner chamber

330 x 330 x 258 mm

Total volume inner chamber

50 l

Raw material housing

Sheet metal powder coat

Raw material hood

PMMA

Raw material front foil

polyester

Raw material front panel

ABS painted

Temperature stability

(1 vessel 0.5 L, RT 25°C, T=37°C)

0.05 ±K

Temperature homogenity

(5 vessel 0.5 L; RT 25°C, T=37°C)

0.5 ±K

Height with open hood

875 mm

Dimensions (W x H x D)

465 x 430 x 695 mm

Weight

37 kg

Permissible ambient temperature

15 - 32 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 30

RS 232 interface

yes

USB interface

yes

Voltage

230 / 115 / 100 V

Frequency

50/60 Hz

Power input

1120 W
