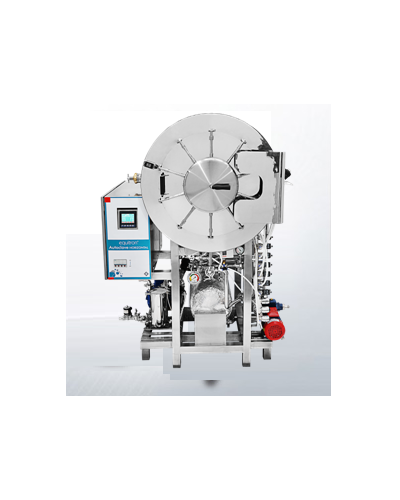

Horizontal Cylindrical Autoclave

Brand: EQUITRONEQUITRON
cylindrical-horizontal-autoclave_1382044040
  KEY FEATURES: Compliant to HTM 2010 and FDA Chamber and loading trays of SS 316 Chamber manufactured and tested as per ASME guidelines Option of integrated steam generator or connecting to external steam source Pre & post vacuum using a superior and low-noise liquid ring pump Unique ...Read more



  • Description



KEY FEATURES:

  • Compliant to HTM 2010 and FDA
  • Chamber and loading trays of SS 316
  • Chamber manufactured and tested as per ASME guidelines
  • Option of integrated steam generator or connecting to external steam source
  • Pre & post vacuum using a superior and low-noise liquid ring pump
  • Unique single lever locking system for effortless locking.
  • Easy access to all critical components
  • Built-in validation port for self calibration checks
  • Independent pressure gauges for chamber, jackets and gasket (in case of double door gasket pressure gauges are fitted for sterile and non-sterile sides)
  • 0.2µ filter to normalise chamber pressure at end of cycle – with sterile air.
  • Online documenting to DMP of 3 temperature sensors with F0, plus one pressure channel along with status information.
  • Service and calibration reminders.
  • Spring loaded safety valves for steam generator and chamber.
  • Touchscreen Graphical Programmable Logic Control (PLC)
  • Passes Bowie Dick Test
  • Option of 21 CFR Part 11 Compliant Software



POWERFUL TOUCHSCREEN CONTROLLER

  • At the heart of the Autoclave is a Programmable Logic Controller (PLC) with a 3.5” touch screen colour display that offers a flexible user-friendly interface and accurate control.
  • All parameters including set parameters & alarms are displayed on the touchscreen
  • Selection of pre-set cycles from cycle library (user editable)
  • Pre-set Bowie Dick Test / Vacuum Leak Test (VLT)
  • Corrective action programme on power failure



SAFETY

  • Over pressure (chamber, jacket and steam generator)
  • Over temperature
  • MCB for electrical safety
  • Pressure interlock on door
  • Door interlock on cycle start
  • Audio-visual alarms for sensor open, over pressure & temperature
  • Chamber manufactured and tested as per ASME guidelines



Model

#7461-0075-CH1G

#7461-0075-CH1E

#7461-0138-CH1G

#7461-0138-CH1E

#7461-0216-CH1G

#7461-0216-CH1E

#7461-0216-CH2G

#7461-0216-CH2E

Capacity 75 Lit 138 Lit 216 Lit 216 Lit
Doors 1 No. 1 No. 1 No. 2 Nos.
Chamber Dimensions 40 x 60 mm 40 x 110 mm 50 x 110 mm 50 x 110 mm
Steam Source

Built-in steam Generator (models ending with 'G')

Without steam generator - for connection to onsite steam source (models ending with 'E')

Temperature Range upto 135.0ºC 135.0ºC 135.0ºC 135.0ºC
Operating Pressure 30/206.8 (Psi/kPA) 30/206.8 (Psi/kPA) 30/206.8 (Psi/kPA) 30/206.8 (Psi/kPA)
Duty Cycle  Four cycles in eight hour shift with a 30 minute cooling period
