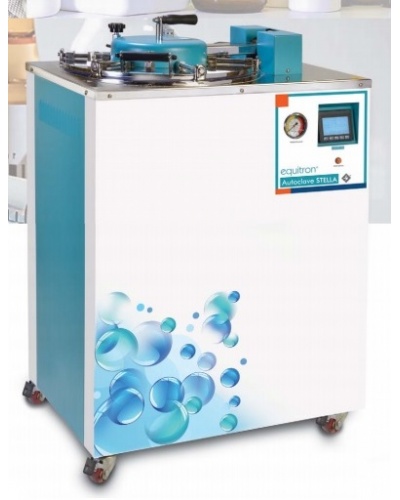

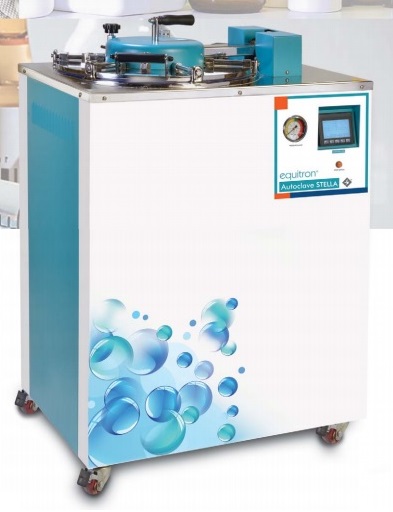

Autoclave STELLA Series

Brand: EQUITRONEQUITRON
stella
  EQUITRON STELLA series autoclaves are ideal for tests involving controlled progressive heat up and cooling applications. Ideal for Extractable & Leachable tests in Pharma, QC, QA, R & D Labs, Production and Bio labs for all situations requiring critical control over the entire process of ...Read more



  • Description



EQUITRON STELLA series autoclaves are ideal for tests involving controlled progressive heat up and cooling applications. Ideal for Extractable & Leachable tests in Pharma, QC, QA, R & D Labs, Production and Bio labs for all situations requiring critical control over the entire process of sterilization.

  • Controlled steam injection to attain the critical requirements of USP 660
  • Safe and sturdy chamber manufactured to ASME standards in SS 304
  • External panels also SS 304 and heat cured epoxy coated for abrasion resistance and durable finish.
  • Convenient and fast single lever locking of lid.
  • Effortless lifting of lid with assisted support.
  • Leak proof sealing with registered gasket design.
  • Automatic purging and exhaust.
  • Operating pressure 16 psi / 110.3 kPA
  • Temperature range upto 122.0⁰C
  • Three cycles in eight hour shift with a 30 minute cooling period.
  • Dual scales of psi and kPA with temperature readout on pressure gauge.
  • Touch screen PLC for accurate temperature control, built in recipes, power failure restore and password protection upto 3 levels.
  • User selectable alphanumeric batch number and operator name.
  • Online documenting of 1 + 2 temperature + 1 pressure channel +F0 cumulation of 1 temp channel to external Printer (printer in scope of standard supply).
  • Service and calibration reminders.
  • Electric interlock for lid lock safety.
  • Audio and visual alarms for sensor open and over pressure.
  • Lid locked when under pressure
  • Electrical on/off safety switch.
  • Easy manoeuvrability and placement.



Model

Working Chamber
Size (Ø x D) mm / Capacity L

Carrier
(Ø x D) mm

Heater

#7441EL

Ø 450 x 710 / 113

2 x Ø 400 x 330

3.5 kW
