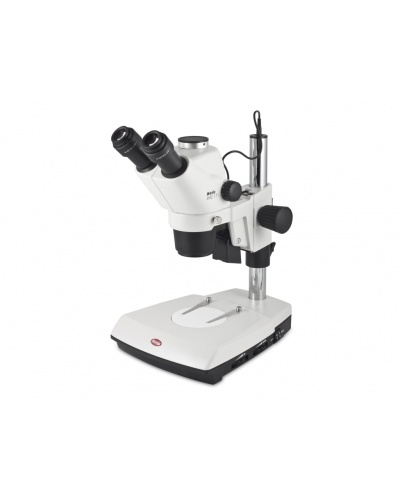

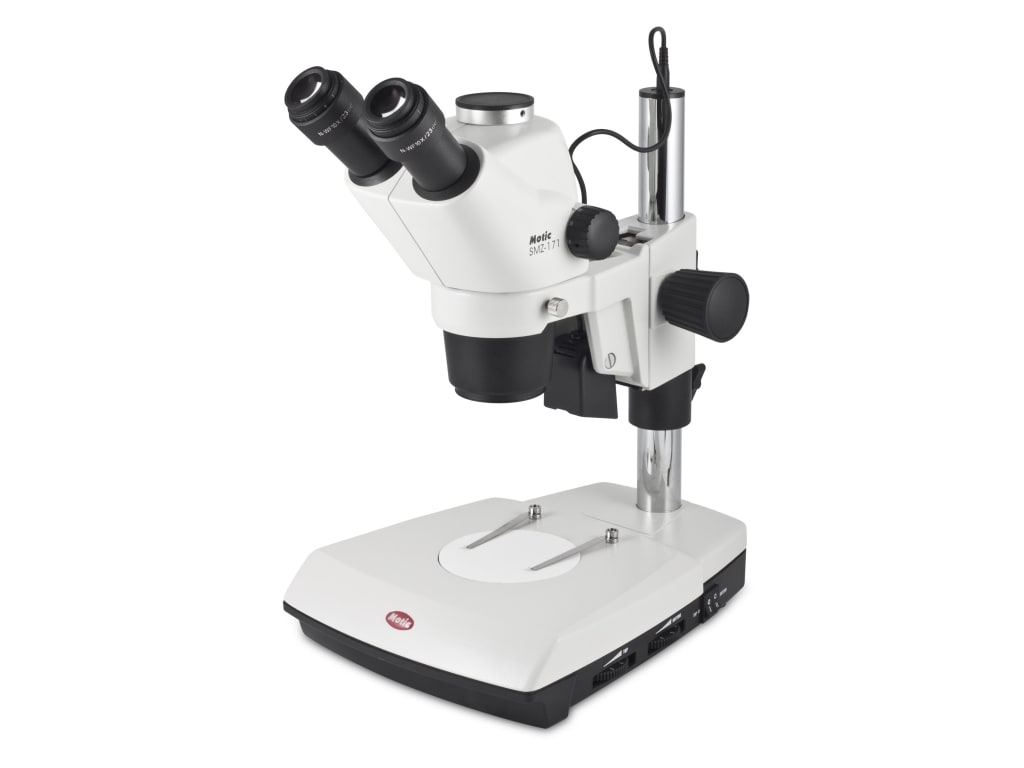

- Trinocular Stereo Zoom Microscope SMZ-171-TLED
- Description
|
Zoom Ratio |
Greenough zoom optical High-Resolution system 6.7:1 Zoom ratio Perfocal at all magnification |
|
Observation Tube |
45 deg. Binocular head, 360 deg. rotating, Interpupilliary distance 48-75mm Diopter adjustment on both eyepieces |
|
Eyepiece |
Wide field High Point eyepieces 10X / FN 23 and Diopter adjustable on both sides. |
|
Working Distance |
WD=110mm extendable to 200mm with additional objective. |
|
Standard Magnification range |
0.75x-50x. |
|
Magnification range |
Extendable From 2.25X to 200X with Additional Optics. |
|
Illumination |
3W LED lamp for transmitted and reflected light source with Intensity Control. |
|
Diopter Adjustment |
± 5 Deg. |
|
Max.view [Standard] |
23mm |
|
Main supply |
100V-240V |
Brand: MOTIC
