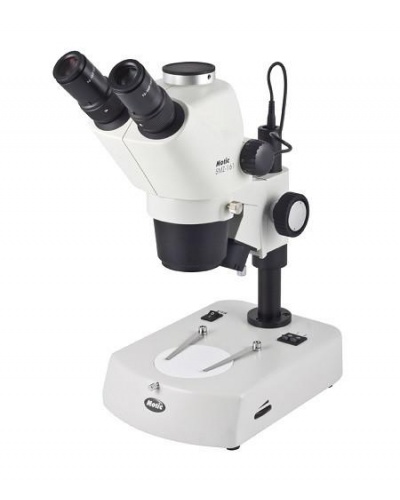

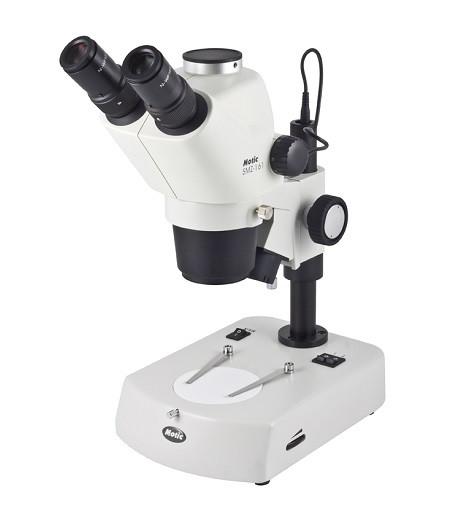

Trinocular Stereo Zoom Microscope SMZ-161-TLED

Zoom Ratio

Greenough zoom optical High-Resolution system 6.7:1 Zoom ratio Perfocal at all magnification

Observation Tube

45 deg. Binocular head, 360 deg. rotating, Interpupilliary distance 48-75mm Diopter adjustment on both eyepieces

Eyepiece

Wide field High Point eyepieces 10X / FN 20 and Diopter adjustable on both sides.

Working Distance

WD=110mm extendable to 200mm with additional objective.

Standard Magnification range

0.75x-50x.

Magnification range

Extendable From 2.25X to 200X with Additional Optics.

Illumination

3W LED reflected light and transmitted light Illumination with Intensity Control

Diopter Adjustment

± 5 Deg.

Max.view [Standard]

20mm

Main supply

100V-240V
