- T 10 basic ULTRA-TURRAX®
- Description

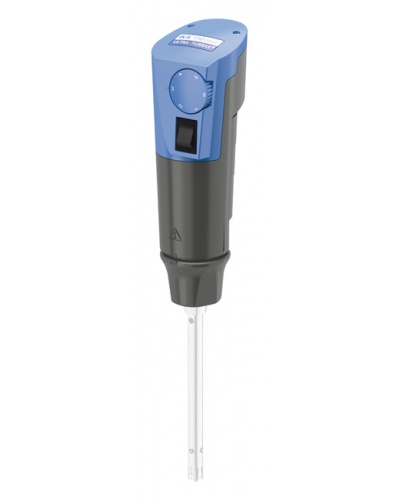

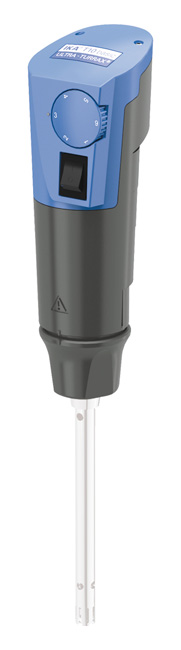

Small dispersing instrument for volumes from 0.5 - 100 ml (H2O). It offers a wide speed range from 8000 – 30,000 rpm that enables users to work at high circumferential speeds even with small rotor diameters. A broad choice of dispersing elements guarantees a wide range of applications.
- Quick-connect coupling for changing dispersing elements easily
- Ideal for manual operation due to its light weight and ergonomic design
- Extremely mobile due to direct line power (no transformer required)
- Stainless steel dispersing elements can be cleaned quickly and easily as they can be dismounted without tools
- Plastic disposable dispersing elements are available in two sizes, particularly suitable for PCR analysis
- High performance drive ensures immense speed stability
- Quiet operation
|
Motor rating input [W] |
125 |
|
Motor rating output [W] |
75 |
|
Volume range (H2O) [l] |
0.0005 – 0.1 |
|
Viscosity max. [mPas] |
5000 |
|
Speed range [rpm] |
8000 - 30000 |
|
Speed control |
Stepless |
|
Speed display |
Scale |
|
Noise without element [dB(A)] |
65 |
|
Extension arm diameter [mm] |
8 |
|
Extension arm length [mm] |
100 |
|
Process type |
Batch |
|
Power-ON time [min] |
10 |
|
Power-OFF time [min] |
5 |
|
Dimensions (W x H x D) [mm] |
56 x 178 x 66 |
|
Weight [kg] |
0.5 |
|
Permissible ambient temperature [°C] |
5 – 40 |
|
Permissible relative humidity [%] |
80 |
|
Protection class according to DIN EN 60529 |
IP 30 |
|
Voltage [V] |
230 / 115 /100 |
|
Frequency [Hz] |
50 / 60 |
|
Power input [W] |
125 |
