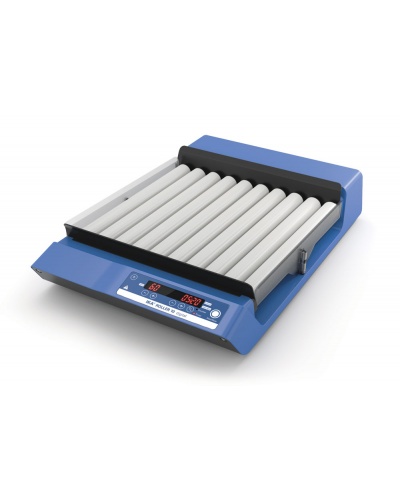

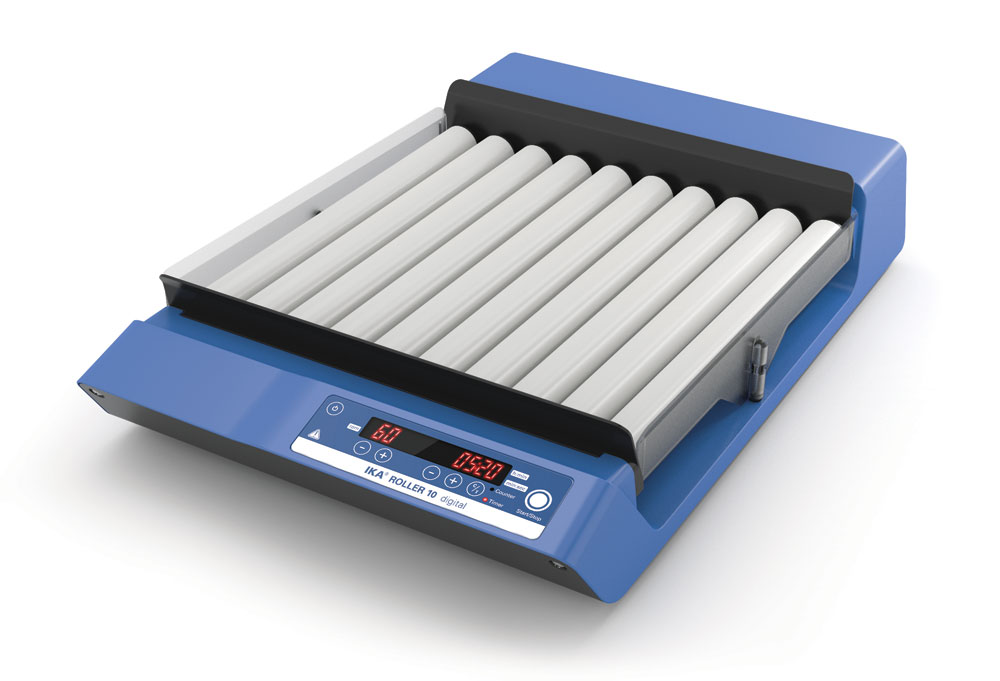

- Roller Shaker ROLLER 10 digital
- Description
Digital roller shaker with 10 rolls provides smooth rocking and rolling action at infinitely adjustable speeds. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.
- Timer: Countdown, adjustable from 1 s to 99h 59min
- Counter: Display of shaking time
- Error Code Display
- Usable at 4 to 50 °C in incubators
- Suitable for continuous operation
- Removable rolls enable shaking of larger tubes
- Easy operation with keypad
- Shaking diameter: 24,5 mm (height)
- Speed range: 5 - 80 rpm
|
Type of movement |
rolling |
|
Permissible ON time |
100 % |
|
Speed min (adjustable) |
5 rpm |
|
Speed range |
0 - 80 rpm |
|
Speed display |
7 segment LED |
|
Speed control |
1 RPM steps |
|
Timer |
yes |
|
Timer display |
7 segment LED |
|
Time setting min. |
1 s |
|
Time setting max. |
5999 min |
|
Operating mode |
timer and continuous operation |
|
Rolls, number |
10 |
|
Rolls, Ø |
32 mm |
|
Rolls, length |
327 mm |
|
Working area length |
350 mm |
|
Rolls, luffing angle fixed |
3 ° |
|
Rolls, max stroke at roll end |
16 mm |
|
Rolls, changeable, removable |
yes |
|
Dimensions (W x H x D) |
380 x 115 x 545 mm |
|
Weight |
6 kg |
|
Permissible ambient temperature |
4 - 50 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
100 - 240 V |
|
Frequency |
50/60 Hz |
|
Power input |
24 W |
|
DC Voltage |
24 V= |
|
Current consumption |
1000 mA |
