- Roller Shaker ROLLER 10 basic
- Description

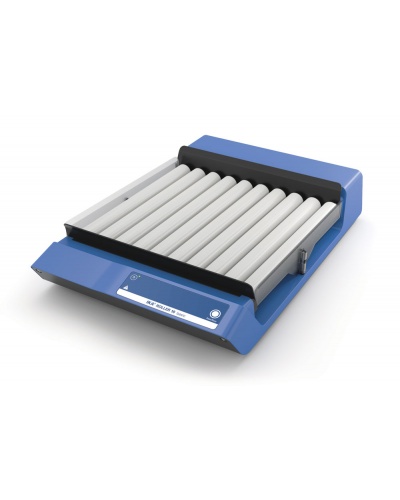

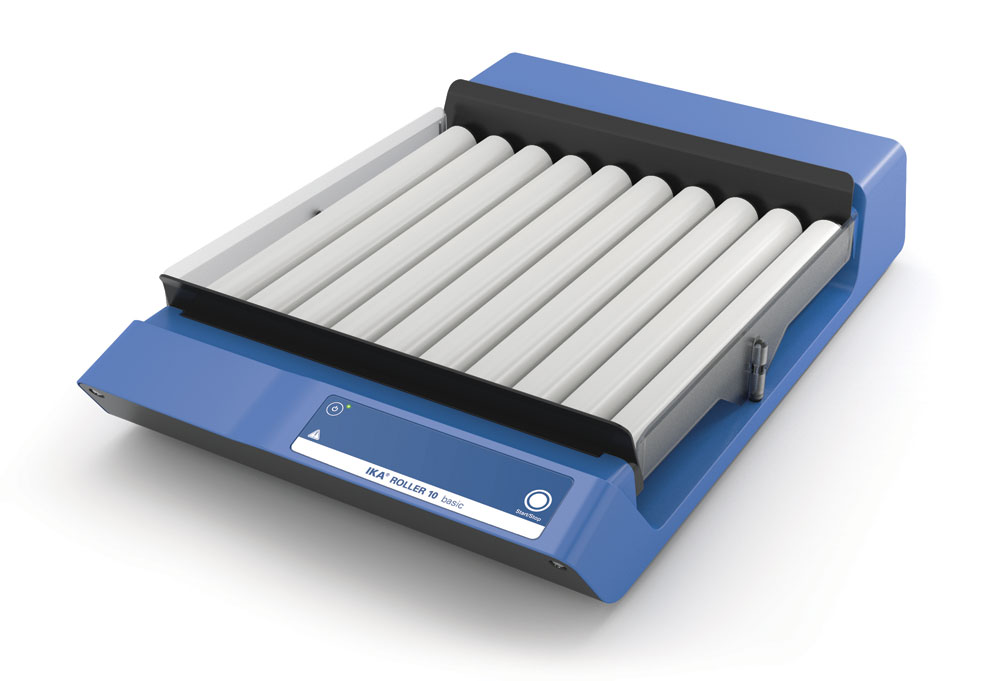

Roller shaker with 10 rolls provides smooth rocking and rolling action at a fixed speed. Used for mixing blood samples, solid and liquid suspensions and viscous samples. The unit can be used with all conventional tubes and cylindrical bottles. Easily removable attachments provide for quick cleaning in case of sample spills.
- Usable at 4 to 50 °C in incubators
- Suitable for continuous operation
- Removable rolls enable shaking of larger tubes
- Easy operation with touch keypad
- Shaking diameter: 24,5 mm (height)
- Speed range: 30 rpm (fixed)
|
Type of movement |
rolling |
|
Permissible ON time |
100 % |
|
Speed min. |
0 rpm |
|
Speed fix |
30 rpm |
|
Speed display |
none |
|
Timer display |
none |
|
Operating mode |
continuous operation |
|
Rolls, number |
10 |
|
Rolls, Ø |
32 mm |
|
Rolls, length |
327 mm |
|
Working area length |
350 mm |
|
Rolls, luffing angle fixed |
3 ° |
|
Rolls, max stroke at roll end |
16 mm |
|
Rolls, changeable, removable |
yes |
|
Dimensions (W x H x D) |
380 x 115 x 545 mm |
|
Weight |
6 kg |
|
Permissible ambient temperature |
4 - 50 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
100 - 240 V |
|
Frequency |
50/60 Hz |
|
Power input |
24 W |
|
DC Voltage |
24 V= |
|
Current consumption |
1000 mA |
