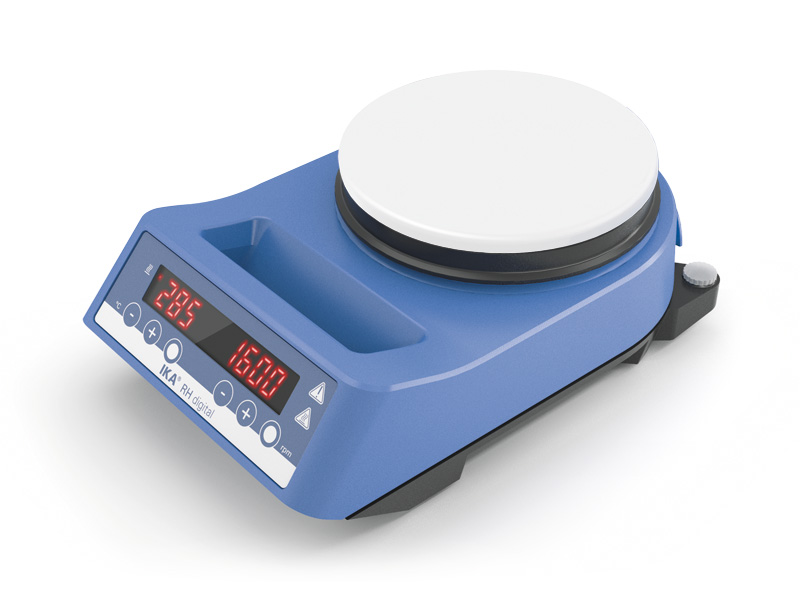

- RH digital white, Technical Enamel Top Plate, Capacity: 15 L, 2000 RPM
- Description
Innovatively designed digital magnetic stirrer with heating. Bushing according to DIN 12878 for connecting an electronic contact thermometer, such as the ETS-D5. Highly accurate temperature control is possible with sensor placed directly in the medium. High heat output of 600 watts and white ceramic heating plate ensures rapid heating and a very good chemical resistance. Adjustable safety temperature from 100 to 360 °C.
- Digital display of temperature and speed
- Soft-start of stirring motor
- Strong magnetic field and wide speed range for volumes up to 15 liters
- Error code display
- Easy operation with touch keypad
|
Number of stirring positions |
1 |
|
Stirring quantity max. per stirring position (H2O) |
15 l |
|
Motor rating output |
2 W |
|
Direction of rotation |
left |
|
Speed display set-value |
LED |
|
Speed control |
Button |
|
Speed range |
100 - 2000 rpm |
|
Stirring bar length |
20 - 80 mm |
|
Self-heating of the set-up plate by max. stirring (RT:22°C/duration:1h) |
28 +K |
|
Heat output |
600 W |
|
Temperature display set-value |
LED |
|
Temperature unit |
°C |
|
Heating temperature range |
50 - 320 °C |
|
Heat control |
Button |
|
Temperature setting range |
50 - 320 °C |
|
Heating rate heating plate |
6 K/min |
|
Connection for ext. temperature sensor |
ETS-D5 |
|
Adjustable safety circuit |
100 - 360 °C |
|
Set-up plate material |
technical enamel |
|
Set-up plate dimensions |
Ø 135 mm |
|
Dimensions (W x H x D) |
160 x 100 x 250 mm |
|
Weight |
2.8 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
230 / 115 / 100 V |
|
Frequency |
50/60 Hz |
|
Power input |
620 W |
