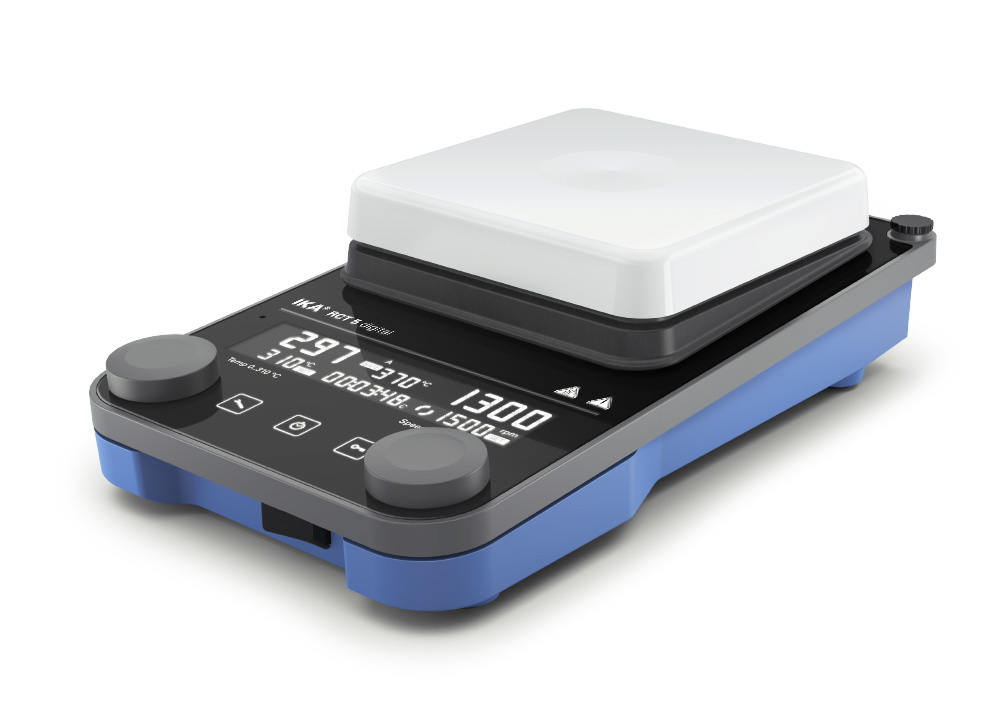

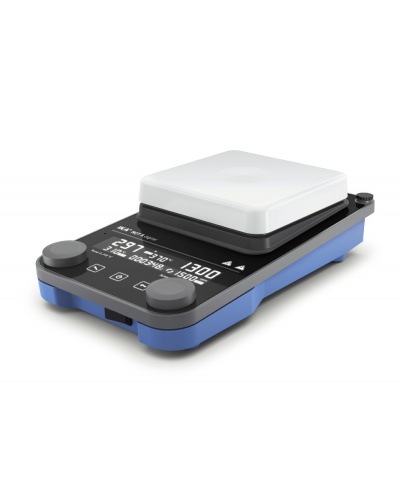

RCT 5 digital, Aluminum with Ceramic Coating Top Plate, Capacity: 20 L, 1500 RPM

Brand: IKAIKA
rct
The RCT digital series of magnetic stirrers with the models RCT 5 digital, RCT digital white and IKA plate (RCT digital) now offers a significantly higher performance with its 800 W and convinces with different set-up plates. This makes the devices the ideal team for the widest range of stirring tas ...Read more



  • Description



The RCT digital series of magnetic stirrers with the models RCT 5 digital, RCT digital white and IKA plate (RCT digital) now offers a significantly higher performance with its 800 W and convinces with different set-up plates. This makes the devices the ideal team for the widest range of stirring tasks.

Multifunctional menu
Whether determining the direction of rotation, timer functions or sequence programming - the stirring process can be programmed individually for all three models from beginning to end. In this way, the reaction runs reliably and safely even without monitoring.

Angular set-up plate
In the case of RCT 5 digital, the set-up plate is made of a white, coated ceramic and has an angular shape for even better space maximisation.



Number of stirring positions

1

Stirring quantity max. per stirring

position (H2O)

20 l

Motor rating output

9 W

Direction of rotation

right / left

Speed display set-value

LCD

Speed display actual-value

LCD

Speed control

Turning knob

Speed range

50 - 1500 rpm

Setting accuracy speed

10 rpm

Stirring bar length

30 - 80 mm

Self-heating of the set-up plate

by max. stirring (RT:22°C/duration:1h)

13 +K

Heat output

850 W

Temperature display set-value

LCD

Temperature display actual-value

LCD

Temperature unit

°C / °F

Heating temperature range

Room temp. + device self heating - 310 °C

Heat control

Turning knob

Temperature setting range

0 - 310 °C

Temperature setting resolution of heating plate

1 K

Connection for ext. temperature sensor

PT1000, ETS-D5, ETS-D6

Temperature setting resolution of medium

1 K

Adjustable safety circuit

50 - 370 °C

Set-up plate material

Aluminum with ceramic coating

Set-up plate dimensions

137 x 137 mm

Automatic reverse rotation

yes

Intermittend mode

yes

Viscosity trend measurement

yes

Timer

yes

Sensor in medium detection (Error 5)

yes

Speed deviation (no load,nominal voltage,

at 1500rpm + 25 °C)

2 ±%

Heating rate (1l H2O in H1500)

7.5 K/min

Heat control accuracy of heating plate (at 100°C)

5 ±K

Heat control accuracy with ext. PT1000 (500ml H2O

in 600ml beaker,40mm stirring bar,600rpm,50°C)

0.5 ±K

Heat control accuracy with ETS-D5 (500ml H2O

in 600ml beaker,40mm stirring bar,600rpm,50°C)

0.5 ±K

Heat control accuracy with ETS-D6 (500ml H2O

in 600ml beaker,40mm stirring bar,600rpm,50°C)

0.2 ±K

Dimensions (W x H x D)

160 x 85 x 270 mm

Weight

2.6 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 42

RS 232 interface

yes

USB interface

yes

Voltage

220 - 230 / 115 / 100 V

Frequency

50/60 Hz

Power input

900 W

Power input standby

1.6 W
