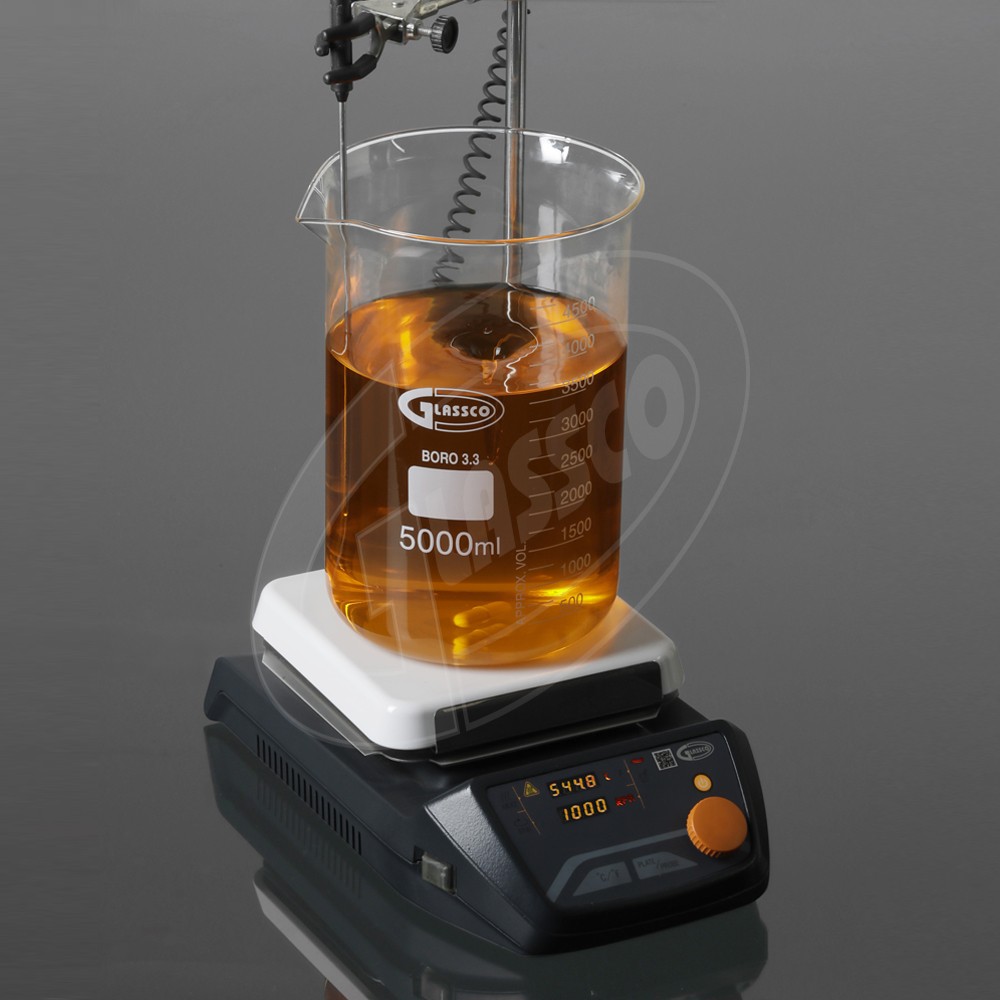

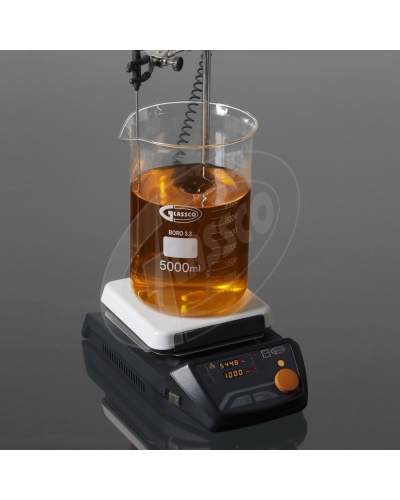

500.AG.01 Glass Ceramic White Top Plate, Capacity: 5 L, 2000 RPM

Calgon Scientific CO.

Description

Aluminium Moulded Construction
Highly scratch and chemical resistant Top.
Even heat distribution on surface of Top.
Thermal insulation for cool body operation.
Digital set up temperature controller with independent LED display.
Inclusive PT 100 temperature sensors probe.
Installed with double PT sensors for safety & fail safe operating mechanism.
Hot top indicator for temperatures above 50°C even when switched off.
Large top plate to assist beaker up to 5000 ml.
Selection of Celsius and Fahrenheit.
Selection of hot plate and probe temperature.
Error code display at any kind of failure.
Independent LED display for RPM and Temperature.
High Magnetic strength.
Single multi-turn intelligent knob operation.
User settable High temperature cut off and hard wired cut off.
DIN connector for external temperature probe.

Heating Plate material	Glass Ceramic white square plate
Dimension of heating plate	175 mm x 175 mm
Stirring Quantity Max.	5 L
Two display windows for	Temperature and RPM
Speed Range	> 2000 RPM
Heat Output	1300 W
Temperature range	Ambient to 510°C
Adjustable safety cut off	580°C
Control accuracy of sensor	± 1k
Weight of body	5.8 kgs
Permissible ambient temperature	5 - 40°C
Permissible relative moisture	80%
USB Port	Yes (For Programming)
Frequency	50 Hz
Voltage	230 Volts
Dimensions of hot plate body	378x220x103
IP Class	21

Brand: GLASSCO
