Dry Block Heater 4

Brand: IKAIKA
4025400_4
Dry Block Heater 4 Digital block heater for four aluminum blocks provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The b ...Read more



  • Description

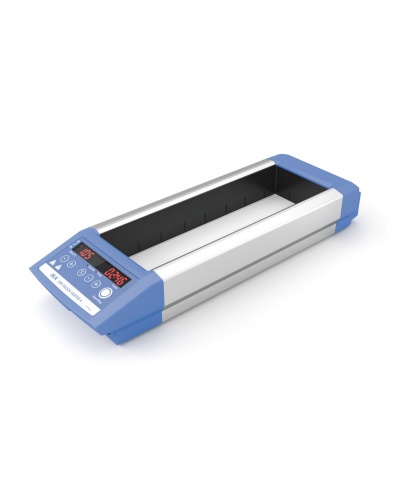

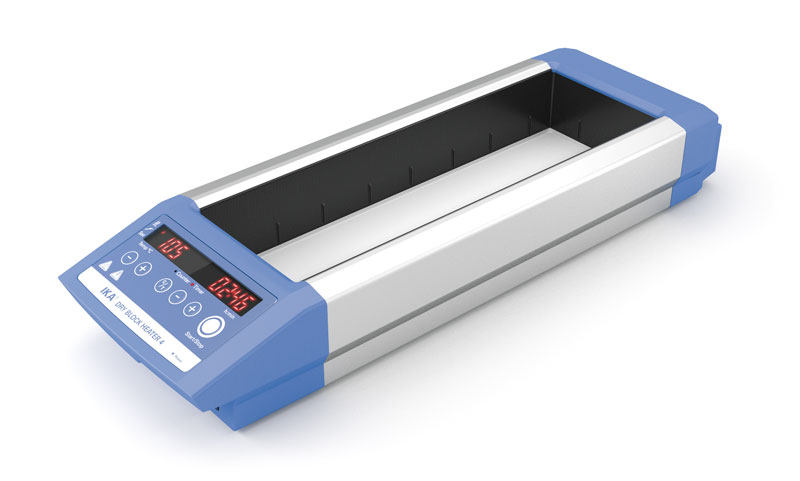

Dry Block Heater 4

Digital block heater for four aluminum blocks provides precise temperature control in small vessels. Included PT-1000 temperature sensor allows temperature control directly in the sample vessel. It is used with PCR tubes, PCR strips, Greiner tubes, microplates and cuvettes. The block heater is ideal for melting and boiling point determination, enzyme reactions, incubation and activation of cultures, immunoassays, DNA denaturation, culture media tests, coagulation tests, blood-urea-nitrogen determinations and in situ hybridizations.

  • Stepless adjustable temperature up to 120 °C
  • Timer: Countdown, adjustable from 1 min to 99h 59 min
  • Counter: Display of heating time
  • Highly versatile with a large number of blocks
  • Error code display
  • Fixed safety circuit
  • Acoustic signal at end of test

Technical Data

Number of blocks                                                   : 4

Heat output                                                            : 412 W

Heating temperature range                                    : room temp. +5° - 120 °C

Temperature display                                              : yes

Adjustment and display resolution                         : 1 K

Connection for ext. temperature sensor                : CT (DIN12878)

PT 1000 variation;DIN EN 60751 Kl. A                  : ≤ ± (0.15 +0.002xITI) K

Temperature stability within the blocks at 37°C *  : 0.2 ±°C

Temperature stability within the blocks at 60°C *  : 0.4 ±°C

Temperature Homogenity @ 37°C *                     : 0.3 K

Temperature Homogenity @ 60°C *                     : 0.6 K

Heatingrate / Heat up time with external sensor * : 4 K/min

Set-up plate material                                            : Aluminium alloy

Set-up plate dimensions                                      : 96 x 304 mm

Fixed safety circuit                                               : 150 °C

Timer                                                                   : yes

Time setting range                                               : 1 - 5999 min

* Measured in IKA DBH Testing block                  : Refer Manual for more details

Dimensions (W x H x D)                                      : 151 x 73 x 456 mm

Weight                                                                : 2 kg

Permissible ambient temperature                       : 5 - 40 °C

Permissible relative humidity                              : 80 %

Protection class according to DIN EN 60529      : IP 21

Voltage                                                               : 220 - 240 / 115 / 100 V

Frequency                                                         : 50/60 Hz

Power input                                                       : 412 W
