- Description

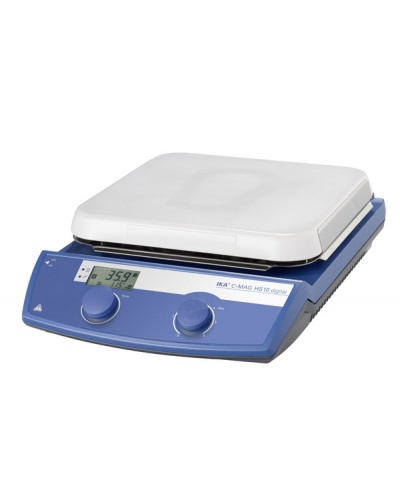

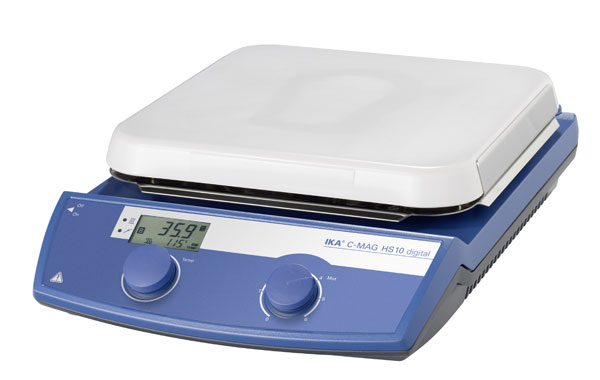

Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.
- Powerful motor for stirring quantities of up to 15 l (H2O)
- Simultaneous digital display of target and actual temperatures via LCD dispaly
- Directly connection for a PT 1000 temperature sensor enable a precise temperature control (included in delivery)
- Control accuracy in medium +/- 0,5 K (in combination with PT 1000)
- Display of actual temperature value in medium with 0,1 K resolution when using PT 1000 temperature sensor
- 3 operating modes to choose (standard, safe, adjustment protection)
- Fixed safety circuit of 550 °C
- Hot Top indicator >> hot surface warning to prevent burns!
- Digital error code display
- Elevated control panel for protection against leaking liquids
|
Number of stirring positions |
1 |
|
Stirring quantity max. per stirring position (H2O) |
15 l |
|
Motor rating output |
1.5 W |
|
Speed control |
scale 0 - 6 |
|
Speed range |
100 - 1500 rpm |
|
Stirring bar length max. |
80 mm |
|
Heat output |
1500 W |
|
Heating temperature range |
50 - 500 °C |
|
Heat control |
stepless |
|
Heating rate heating plate |
5 K/min |
|
Connection for ext. temperature sensor |
PT1000 |
|
Fixed safety circuit |
550 °C |
|
Set-up plate material |
ceramic |
|
Set-up plate dimensions |
260 x 260 mm |
|
Dimensions (W x H x D) |
300 x 105 x 415 mm |
|
Weight |
6 kg |
|
Permissible ambient temperature |
5 - 40 °C |
|
Permissible relative humidity |
80 % |
|
Protection class according to DIN EN 60529 |
IP 21 |
|
Voltage |
230 / 120 / 100 V |
|
Frequency |
50/60 Hz |
|
Power input |
1520 W |
