Bench Top Centrifuge

Proprietary lid-lock system
Solid counter balanced hinges
Active imbalance detection
Emergency lid lock release
Motor over-load protection
Large Back-lit LCD display
Easy to clean Soft Keys
User friendly operation
Real time clock and calendar
Error detection
Eco-shut off engages after 8 hours of non-use to reduce energy consumption and extend compressor life.
Pre-cool program
Fast spin available
On screen Rotor library
99 programs
Functional design
Refrigerant R134a (CFC Free)

Max Speed	20,000 RPM
Min Speed	100 RPM
Maximum Gravitational Field	32,198 x G
Maximum Volume	4 x 175 mL = 700 mL
Speed Range	100 – 20,000 RPM
Speed Control / Display / Setting	Digital
Display	4 line LCD Display of current and Pre-set values
Motor	Maintenance free brush less drive motor
User Interface	Operating Panel with buttons
Chamber	Stainless Steel
Linear Acceleration & Deceleration Curves	0-9
Quadratic Acceleration & Deceleration Curves	10-19
Braking System	Dynamic Electric Braking (Acoustic signal at the end of the run)
Running Time (HH:MM:SS)	99:59:59 & Run hold
Temperature Range	-10°C to 40°C
Condensate Drain	Optional
Dimensions (L x D x H) in mm	705(L) x 575 (D) x 410(H) mm
Net Weight	75 Kgs (165 lbs)
RFI Suppression	EN 61326-1
Noise Level At Max Speed (approx.)	60 db (A)
Electrical Requirements	230 Volts 50 Hz 15 AMP Single Phase
Total Power Consumption	750 Watts
Order	1/987

ROTORS

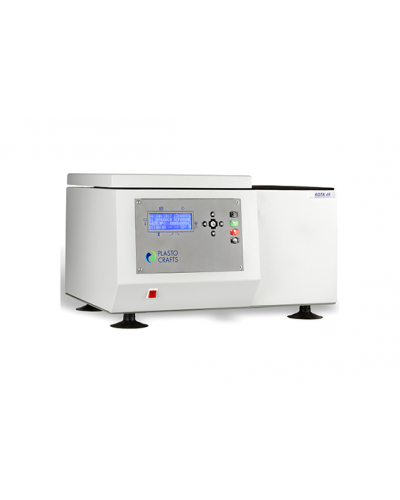

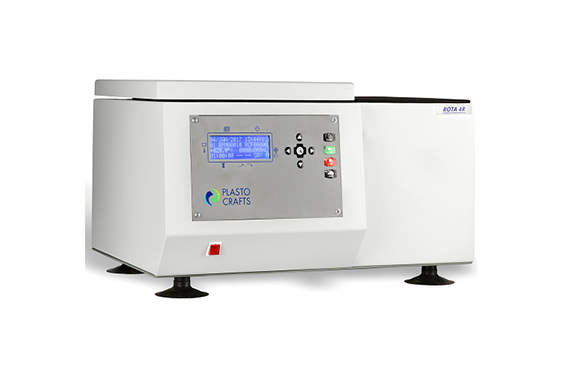

Bench Top Centrifuge - Rota 4R
