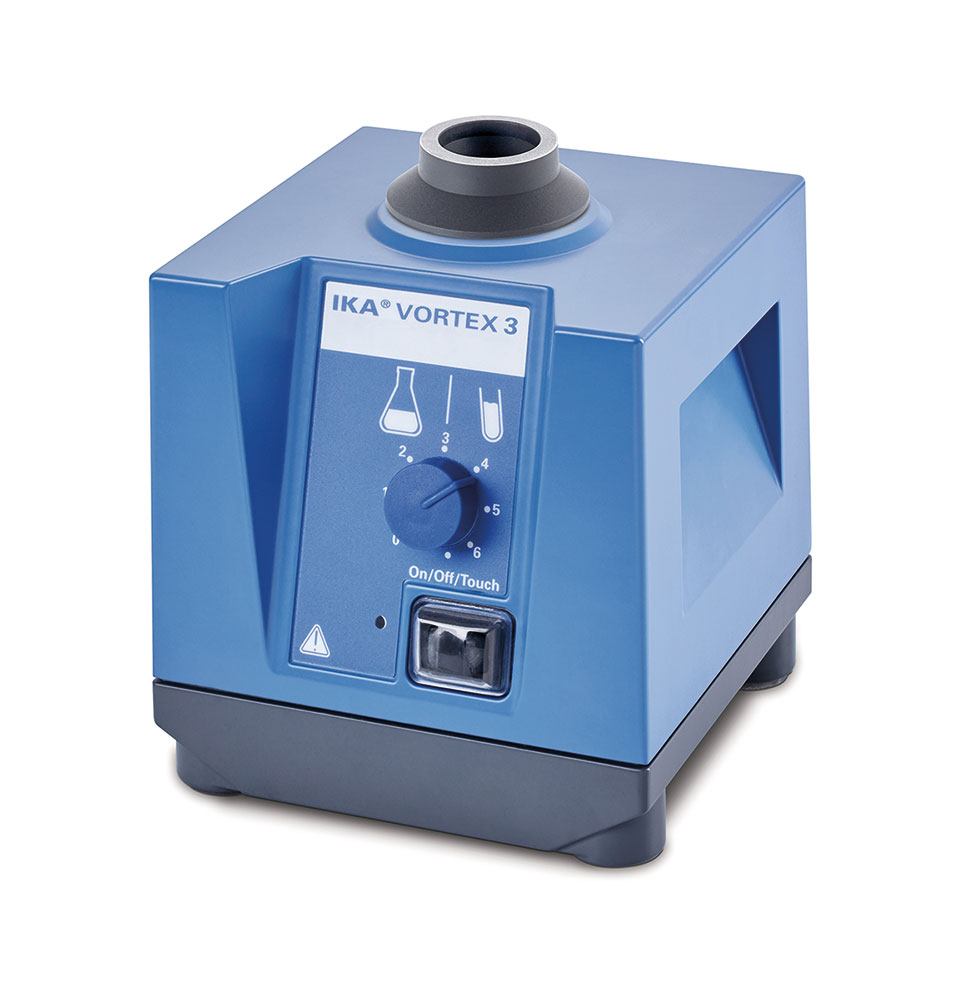

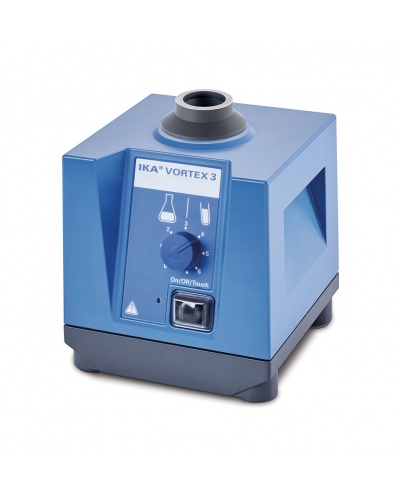

Vortex Shaker VORTEX 3

Brand: IKAIKA
3340000_1
  Wide speed range, infinitely adjustable Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately Attachments securely click onto appliance in any position Special strap (VG ...Read more



  • Description



  • Wide speed range, infinitely adjustable
  • Different applications thanks to 3 interchangeable attachments and 7 inserts (e.g. Eppendorf tubes, microtiter plates, Erlenmeyer flasks 250 ml etc.), please order separately
  • Attachments securely click onto appliance in any position
  • Special strap (VG 3.36, page 51) ensures easy handling of round/Erlenmeyer flasks
  • Sturdy metal zinc die cast casing
  • Compact design
  • Short-time operation activated by pressing attachment (touch function)
  • Stable at high speeds thanks to special feet (silicon base with ultra high vibration damping)
  • Eccentric with ball bearings
  • Suitable for continuous operation with low self heating thanks to self ventilation of motor



Type of movement

orbital

Shaker diameter

4 mm

Motor rating input

58 W

Motor rating output

10 W

Permissible ON time

100 %

Speed min (adjustable)

500 rpm

Speed range

0 - 2500 rpm

Speed display

none

Operating mode

continuous operation

Touch function

yes

Working with microtiter plates

yes

Number of microtiter plates

1

Dimensions (W x H x D)

127 x 136 x 149 mm

Weight

4.5 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

Voltage

200 - 240 / 115 / 100 V

Frequency

50/60 Hz

Power input

  60 W



Brand: IKAIKA
