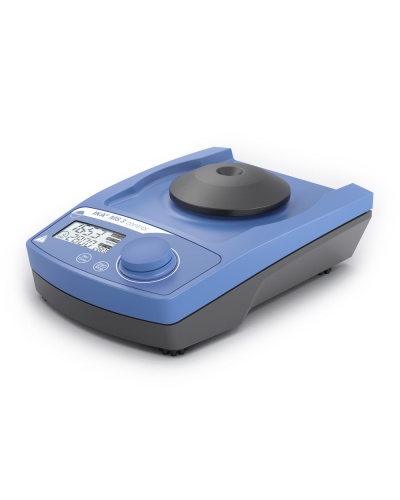

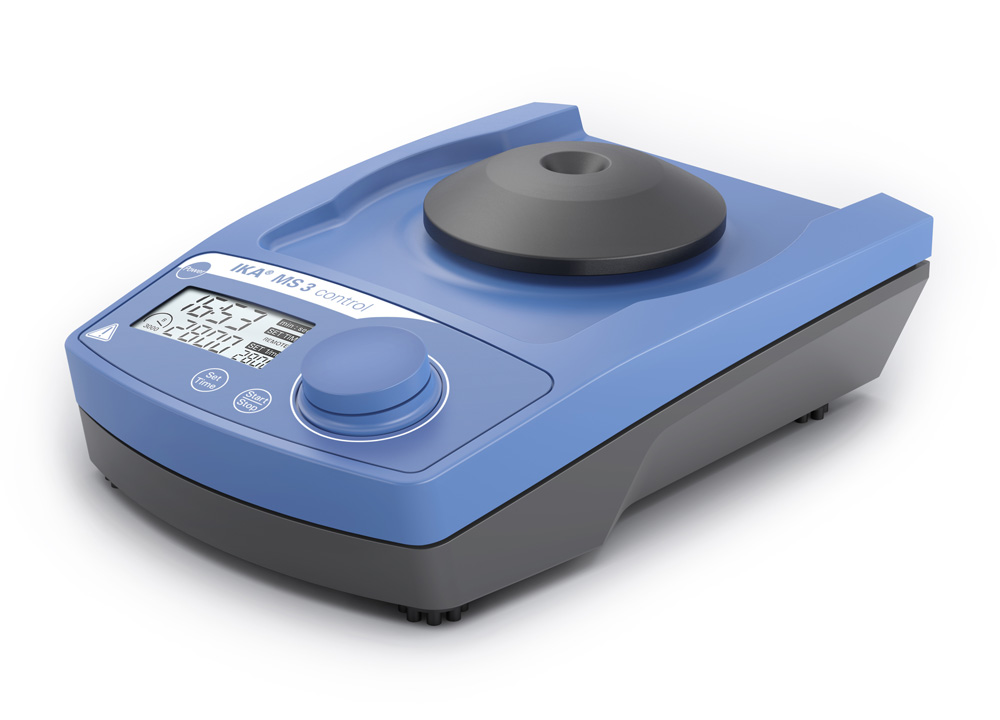

Vortex Shaker MS 3 control

Description

Compact, universal small shaker suitable for shaking tasks with all small vessels and microtiter plates

Wide range of attachments
Attachment detection
Timer with countdown function
Stable in all speed ranges
Sturdy zinc die cast casing
USB connection for remote control
Continuous or touch operation (with standard attachment)

Two operating modes:
Mode A (safe mode with attachment detection):
The maximum speed of 3,000 rpm is only reached with the standard attachment in touch mode. When using other attachments the speed is limited to 1,300 rpm.

Mode B (without attachment detection):
A speed of 3,000 rpm is possible with all attachments, depending on the application (see accessory list in the manual).

Type of movement	orbital
Shaker diameter	4.5 mm
Permissible shaking weight (incl. attachment)	0.5 kg
Motor rating input	10 W
Motor rating output	8 W
Permissible ON time	100 %
Speed min (adjustable)	100 rpm
Speed range	100 - 3000 rpm
Speed display	LCD
Speed deviation	1 %
Timer	yes
Timer display	LCD
Time setting min.	1 s
Time setting max.	3599 min
Operating mode	timer and continuous operation
Touch function	yes
Working with microtiter plates	yes
Number of microtiter plates	1
Dimensions (W x H x D)	148 x 63 x 205 mm
Weight	2.9 kg
Permissible ambient temperature	5 - 40 °C
Permissible relative humidity	80 %
Protection class according to DIN EN 60529	IP 21
RS 232 interface	yes
Voltage	100 - 240 V
Frequency	50/60 Hz
Power input	20 W
DC Voltage	24 V=
Current consumption	800 mA

Brand: IKA
