VACSTAR digital

Brand: IKAIKA
20016236_1

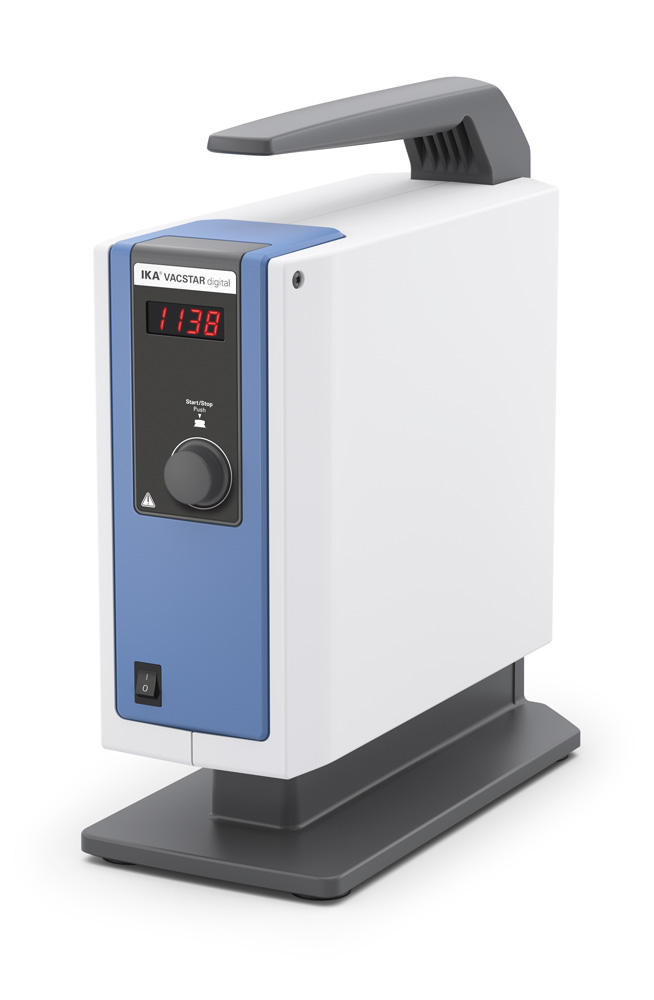

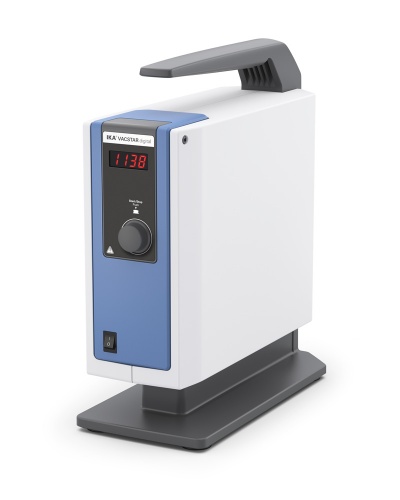

The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm. Automated processes are controlled with the vacuum con ...Read more



  • Description

The four-chamber membrane vacuum pump convinces with its high suction capacity, low space requirement and high serviceability. The setting of the parameters is carried out through a rotary-push button over a digital display showing current rpm.
Automated processes are controlled with the vacuum controller VC 10, which is available as an accessory. An analogue cable which is required for connecting pump and controller is included in the delivery of the pump. Additionally it is recommended to use the VSE 1 vacuum safety emmission. It prevents that solvents are released into ambient air.
The Vacstar digital is used for dry and oli-free applications in the laboratory. The membranes of the pump are particularly chemical resistant.



Pump rate max. (50/60Hz) [m³/h]

1.32

Pump rate max. (50/60Hz) [l/min]

22

Final pressure without gas ballast [mbar]

2

Suction levels

4

Cylinder

4

Connection diameter suction side [mm]

8

Connection diameter pressure side [mm]

8

Input pressure [mbar]

2 - 1030

Two-point control

Yes

Analog speed vacuum control

Yes

Speed control

Turning knob

Speed range [rpm]

285 - 1200

Display

LED

Noise at low. pressure [dB(A)]

54

Material in contact with medium

Al2O3; PTFE; FFPM; PPS; NBR

housing material

alu-cast coating / thermoplastic polymer

Protection class according to DIN EN 60529

IP 20

RS 232 interface

Yes

USB interface

Yes
