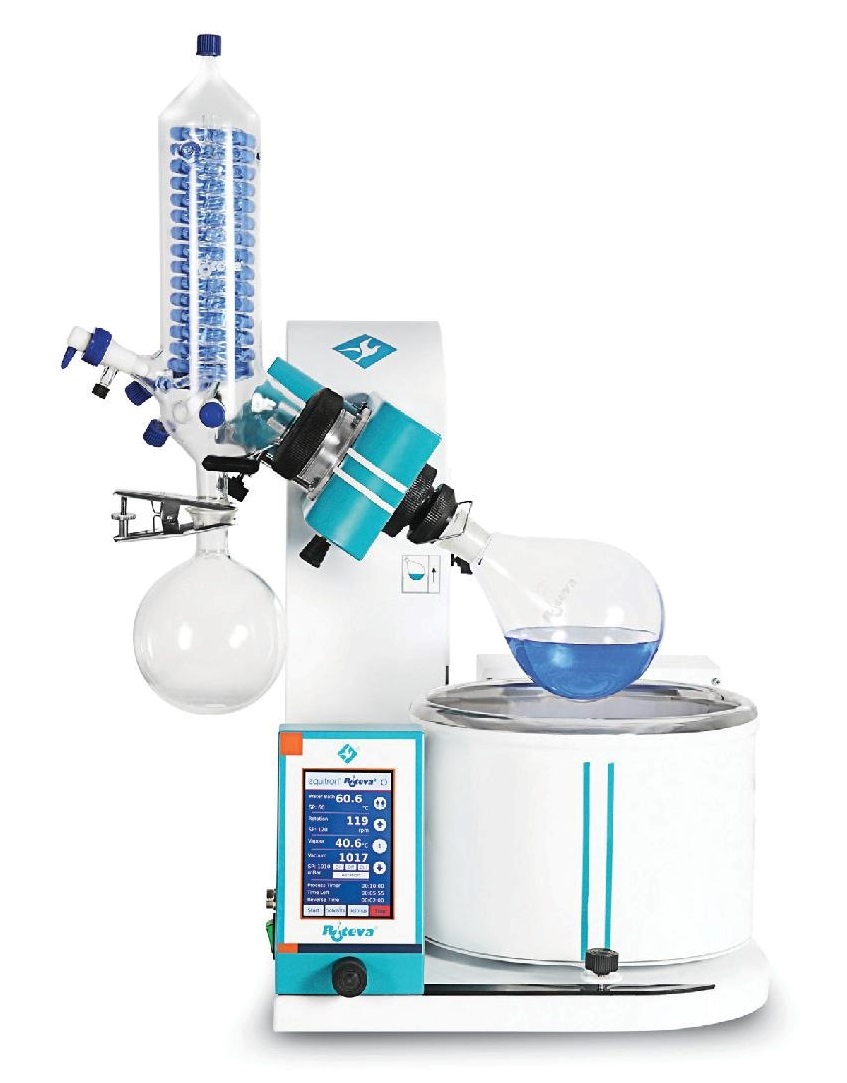

Roteva 3.0 Rotary Vacuum Evaporator

Brand: EQUITRONEQUITRON
lf_rotary_vac_evap_-_roteva_3_0-page-001
  Intuitive Touchscreen Operation The advanced touchscreen interface allows precise operation of all process parameters – heating temperature, rotation speed, vacuum, lift position and lift speed. Optional – Integrated Vacuum Control and Vapour Temperature Indicator   Reversible Direction ...Read more



  • Description



Intuitive Touchscreen Operation

The advanced touchscreen interface allows precise operation of all process parameters – heating temperature, rotation speed, vacuum, lift position and lift speed.

Optional – Integrated Vacuum Control and Vapour Temperature Indicator



Reversible Direction for Uniform Evaporation

The reversible rotation of the evaporating flask enables efficient and uniform evaporation.



Instant Rotation Speed Control

Instant adjustment of rotation speed with the Magic Knob



Item

Specification

Item

Specification

Heating bath dimensions

Ø 230 x 130 mm

Power supply

230 V, AC,

50 Hz

Volume of heating bath

4 lit. Approx.

Rotation speed

30 to 270 rpm

Bath heater capacity

1200 Watts

Rotation speed display

Yes

Heating bath controller

PID with display for set & actual temp.

Lift

Motorised

Bath temperature range

Ambient + 5 to 180°C

Manual lift (When power fails)

Yes

Temperature accuracy

± 2°C

Height adjustment

170 mm Approx.

Independent safety cutout

@ 190 °C

Flask ejector

Yes

Heating bath material

SS 304

Condenser support

Yes

Min / Max flask size

50 ml / 3000 ml

Foot print

220 cm²

Cond. cooling area: D, V

1200 cm²

Glass sets available*

D, V

Environmental conditions (Temp.)

10 to 40°C

Threaded connectors for utilities

Yes

-

-

Feed stopcock & tube made of

PTFE

-

-

Environmental Conditions (% RH)

Max 80% NC
