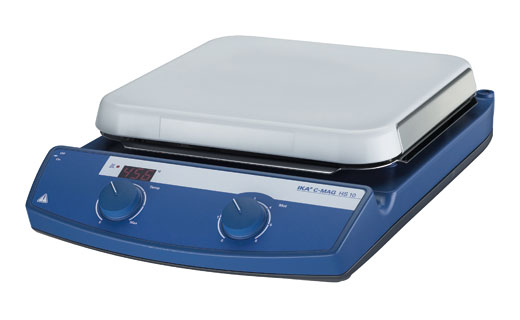

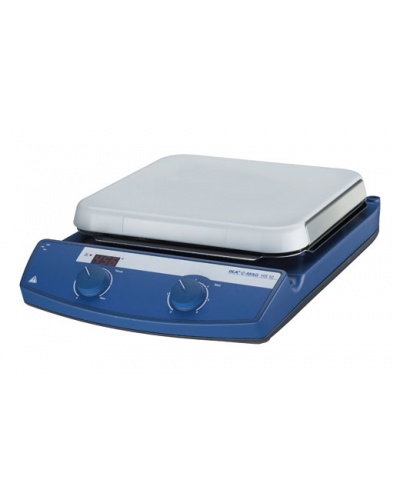

C-MAG HS 10, Ceramic Top Plate, Capacity: 15 L, 1500 RPM

Brand: IKAIKA
hs10
Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance. Powerful motor for stirring quantities of up to 15 l (H2O) Fixed safety circuit of 550 °C Hot Top indicator >> hot surface warning to prevent burns! Exact temperature setting via digital ...Read more



  • Description


Magnetic stirrer with heating and ceramic heating plate which offers excellent chemical resistance.

  • Powerful motor for stirring quantities of up to 15 l (H2O)
  • Fixed safety circuit of 550 °C
  • Hot Top indicator >> hot surface warning to prevent burns!
  • Exact temperature setting via digital display (LED)
  • Bushing according to DIN 12878 for connecting a contact thermometer, e.g. ETS-D5, enables precise temperature control
  • Digital error code display
  • Elevated control panel for protection against leaking liquids



Number of stirring positions

1

Stirring quantity max. per stirring position (H2O)

15 l

Motor rating output

1.5 W

Direction of rotation

left

Speed control

scale 0 - 6

Speed range

100 - 1500 rpm

Stirring bar length max.

80 mm

Heat output

1500 W

Heating temperature range

50 - 500 °C

Heat control

LED

Heating rate heating plate

5 K/min

Connection for ext. temperature sensor

ETS-D5

Fixed safety circuit

550 °C

Set-up plate material

ceramic

Set-up plate dimensions

260 x 260 mm

Dimensions (W x H x D) mm

300 x 105 x 415

Weight

6 kg

Permissible ambient temperature

5 - 40 °C

Permissible relative humidity

80 %

Protection class according to DIN EN 60529

IP 21

Voltage

230 / 120 / 100 V

Frequency

50/60 Hz

Power input

1520 W



Brand: IKAIKA
